USM mounting rails for old compartment fittings for 1st generation side panels

A detail of the interior of a bright green modular piece of furniture, presumably a USM Haller shelving unit. A narrow, shiny metal strut with small round holes divides the image diagonally and supports what appears to be a shelf.

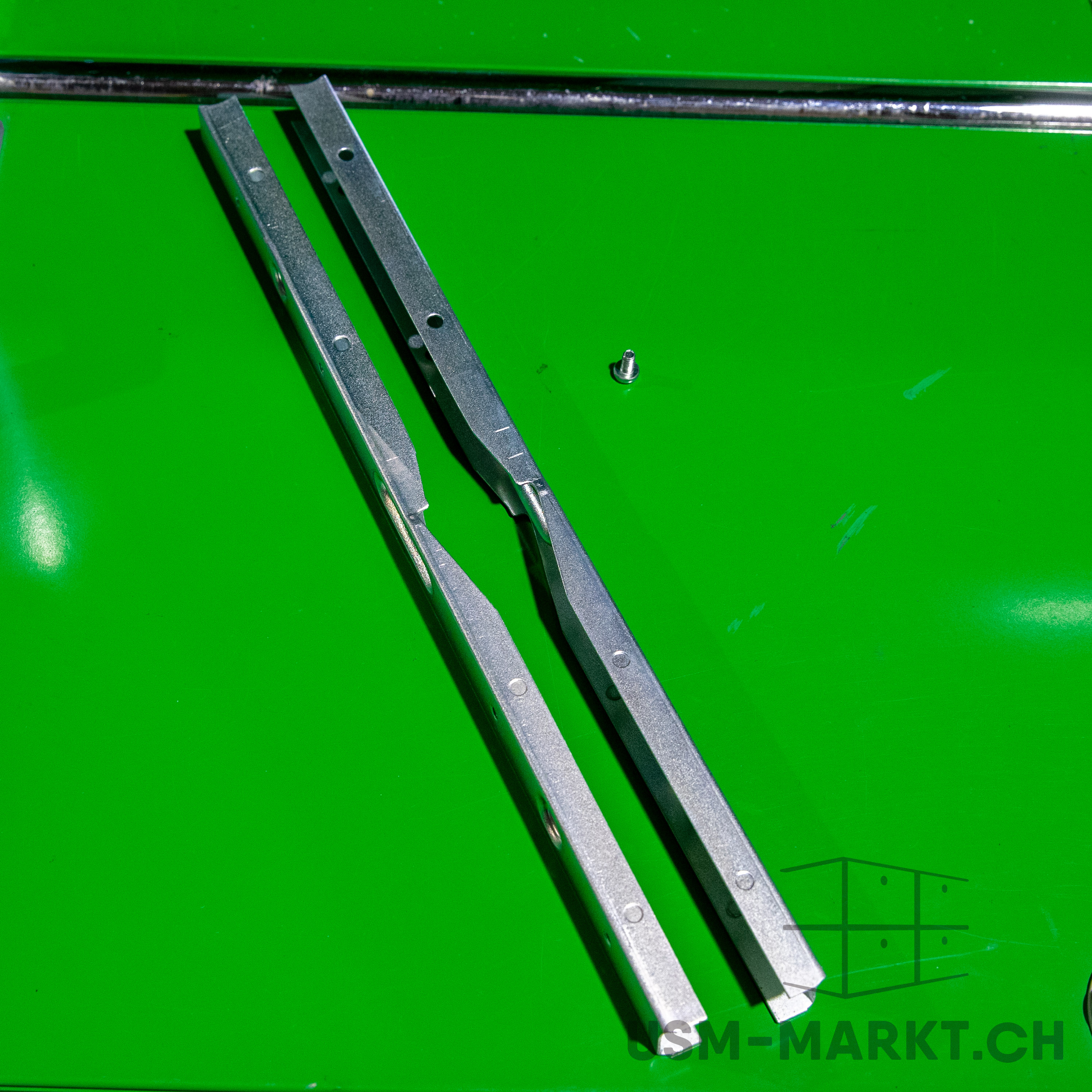

Two silver-coloured, U-shaped metal rails lie parallel to one another on a shiny, bright green surface. Each rail has several small round holes. To the right of the rails lies a single small flat-headed screw.

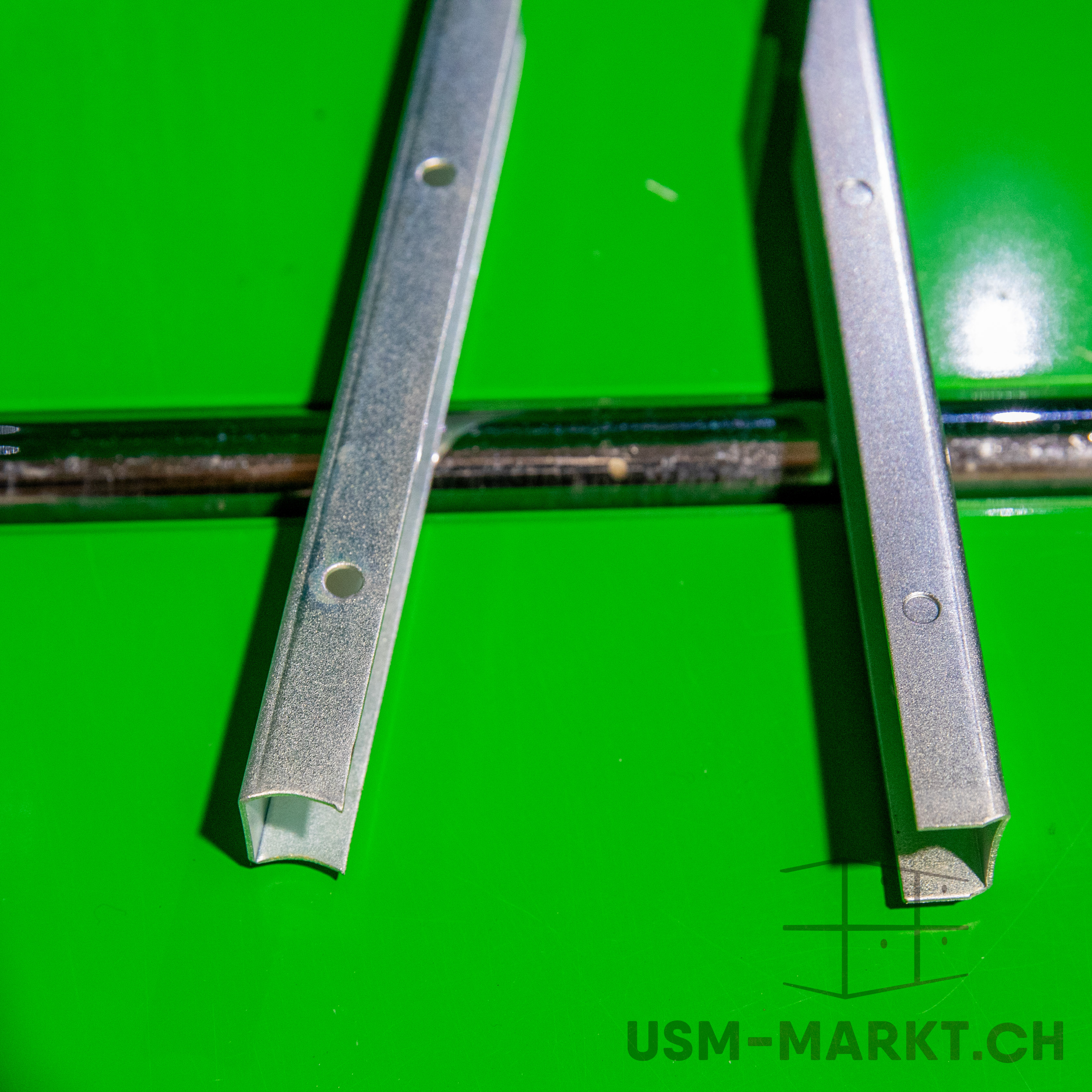

Two vertical silver metal profiles, each with a circular hole, rest on a bright green surface. A dark, shiny metal rod runs along the background. The profiles have a slightly textured, matt finish.

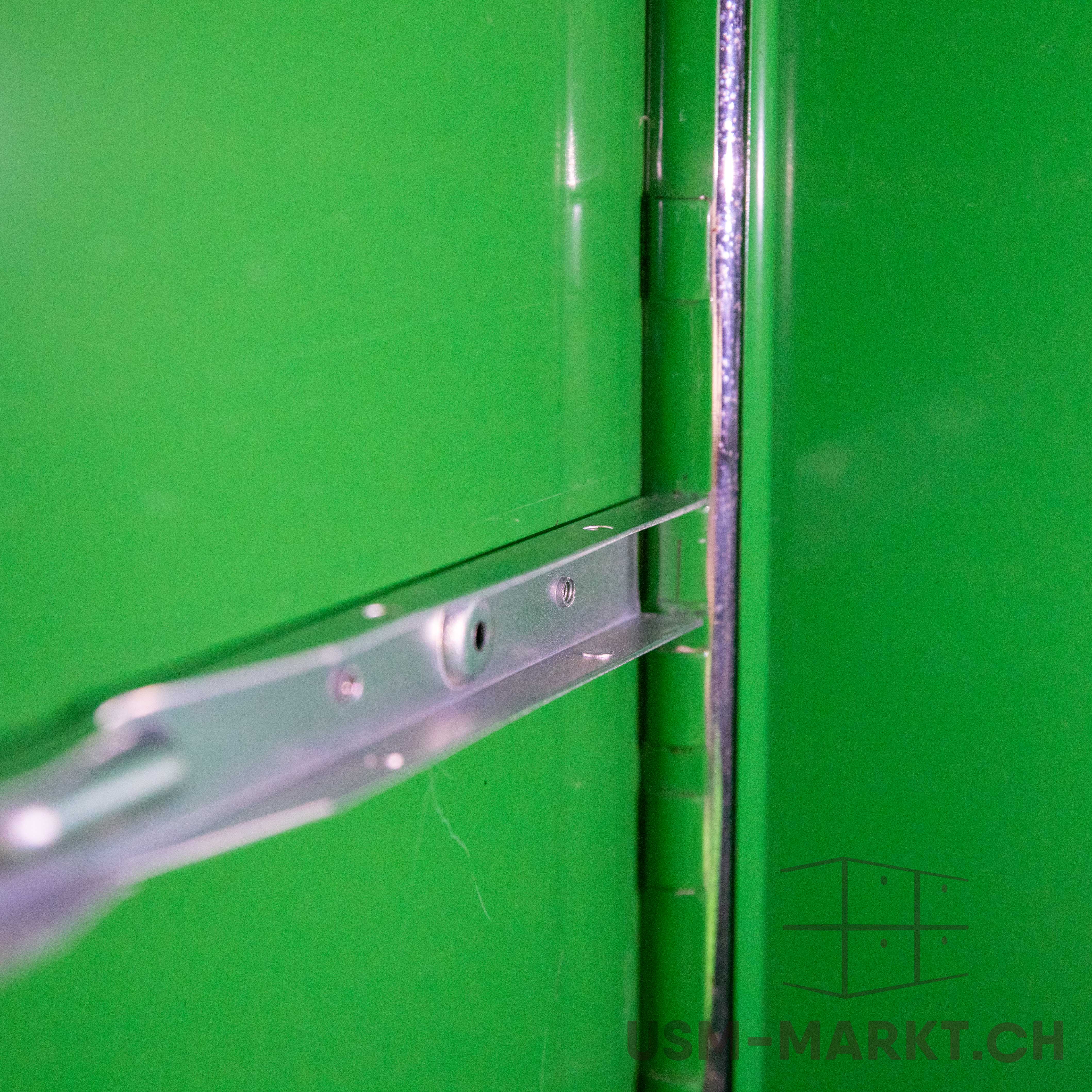

Close-up of a shiny silver metal strut, fixed diagonally to a bright green surface. Secured with a round screw or rivet, it reflects light. To the right, a vertical metal edge of a sturdy structure.

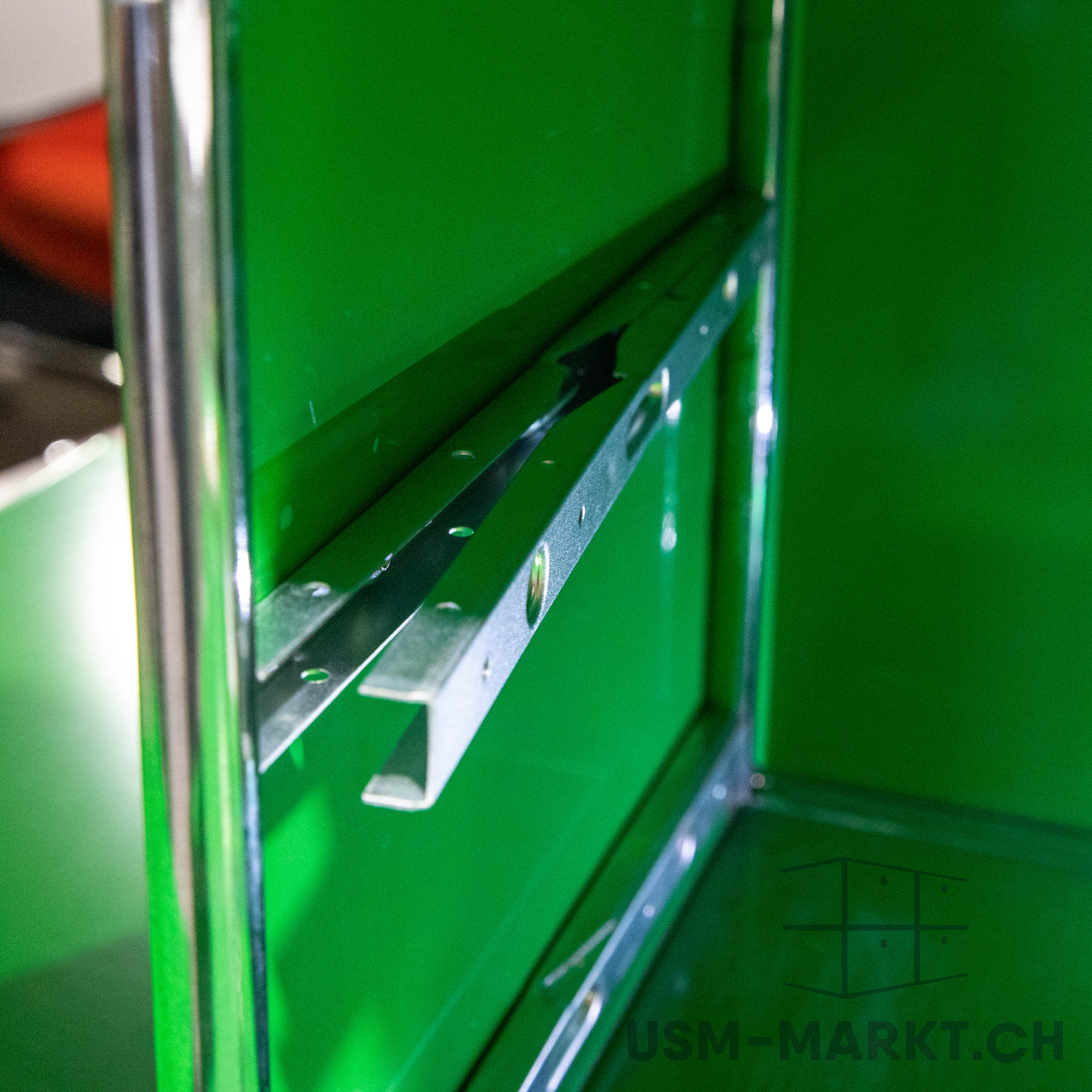

A detailed view of a bright green modular unit with an open interior. Two horizontal, perforated metal rails for adjustable positioning of shelves are visible. On the left is a polished chrome rail.

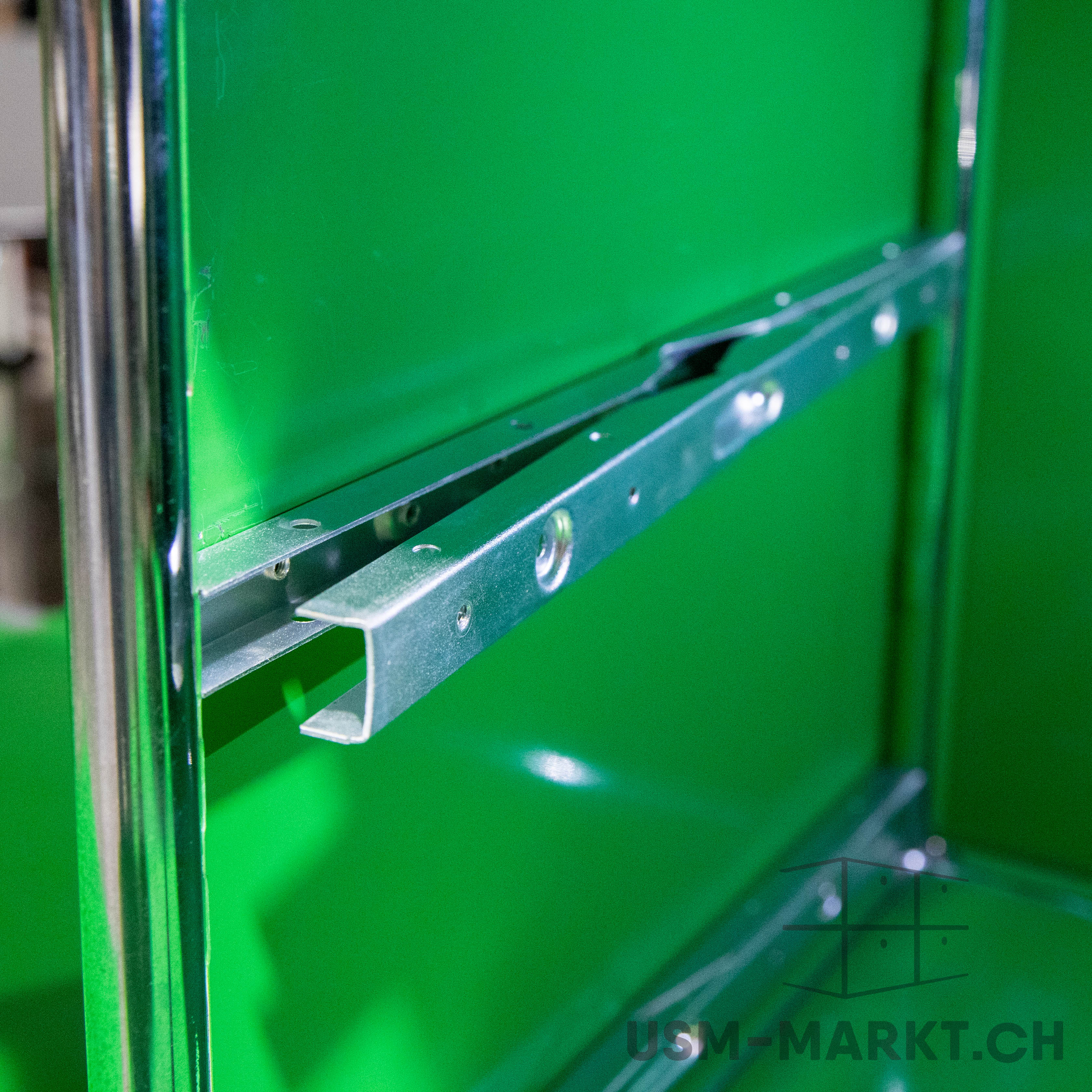

Interior view of a USM Haller unit in bright green. A metallic U-shaped guide rail is mounted horizontally on the back panel, ready for a drawer or shelf. Shiny chrome tubes on the left; textured green surface.

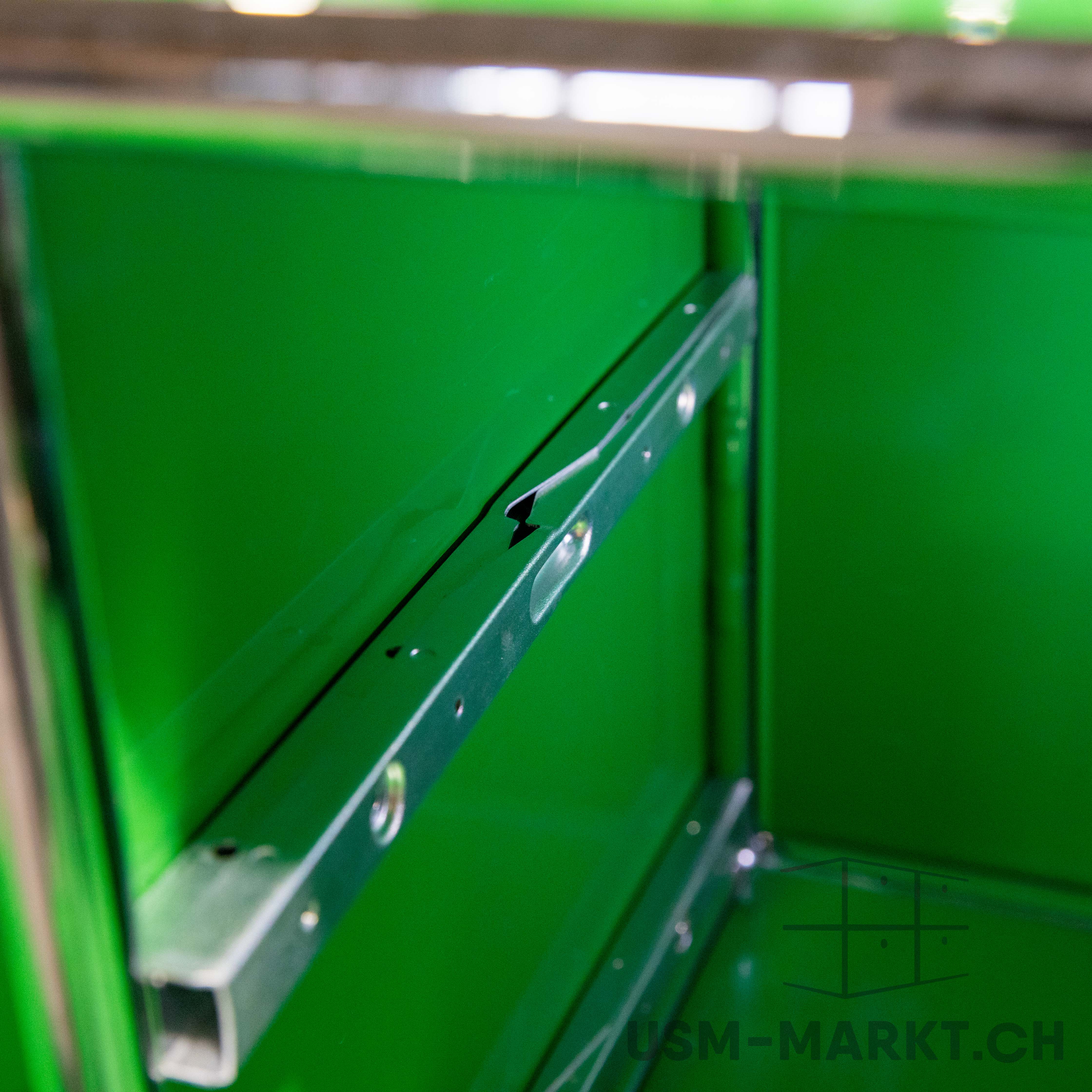

A close-up of the interior of a cupboard or drawer in bright green. The metal side rails for the drawers are visible, mounted on smooth green interior walls. Viewed slightly from above, looking into the depth of the space.

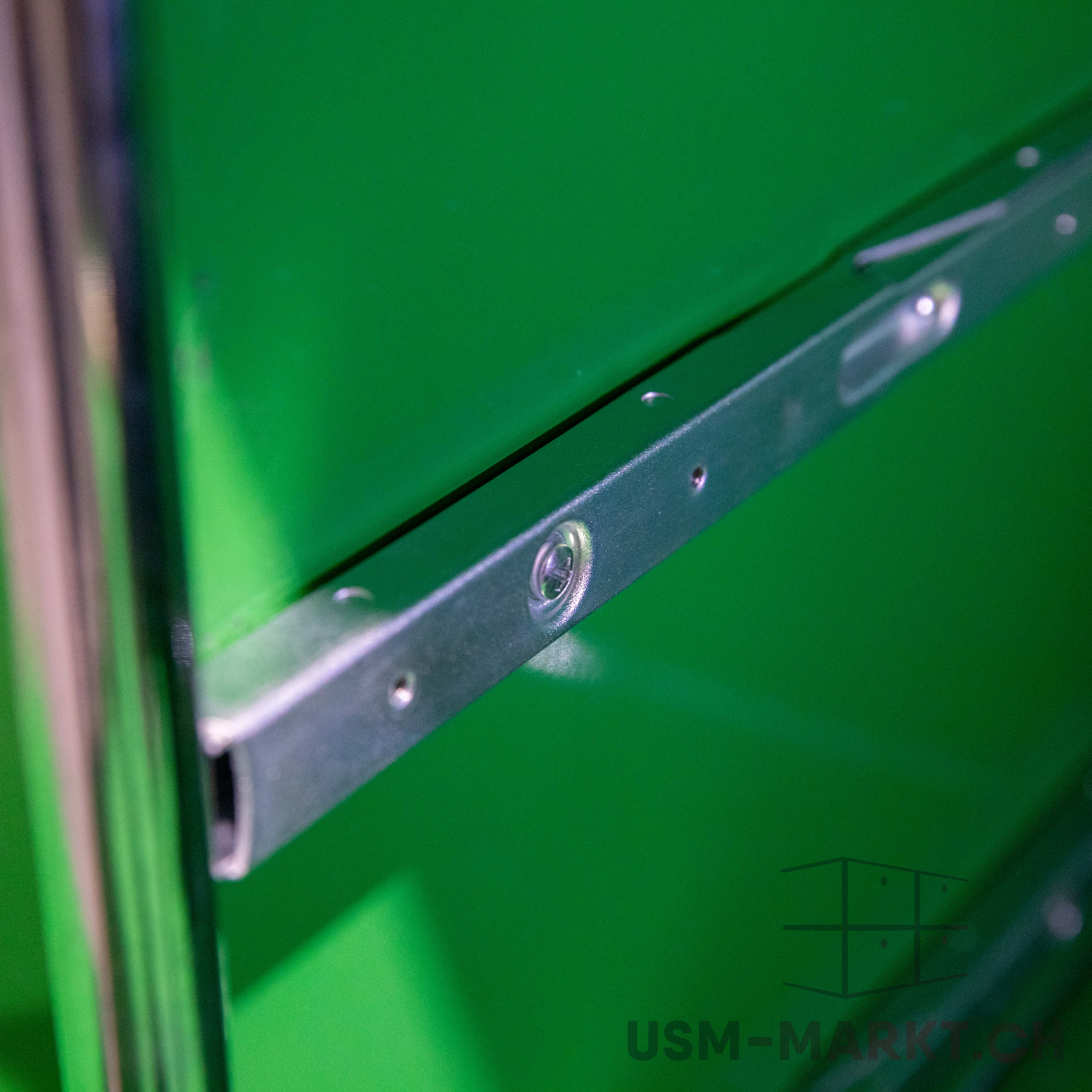

Close-up of a silver metal element running horizontally across a bright green surface. Several screw heads are visible. On the left, a blurred vertical rod. Fine textures, technical aesthetic.

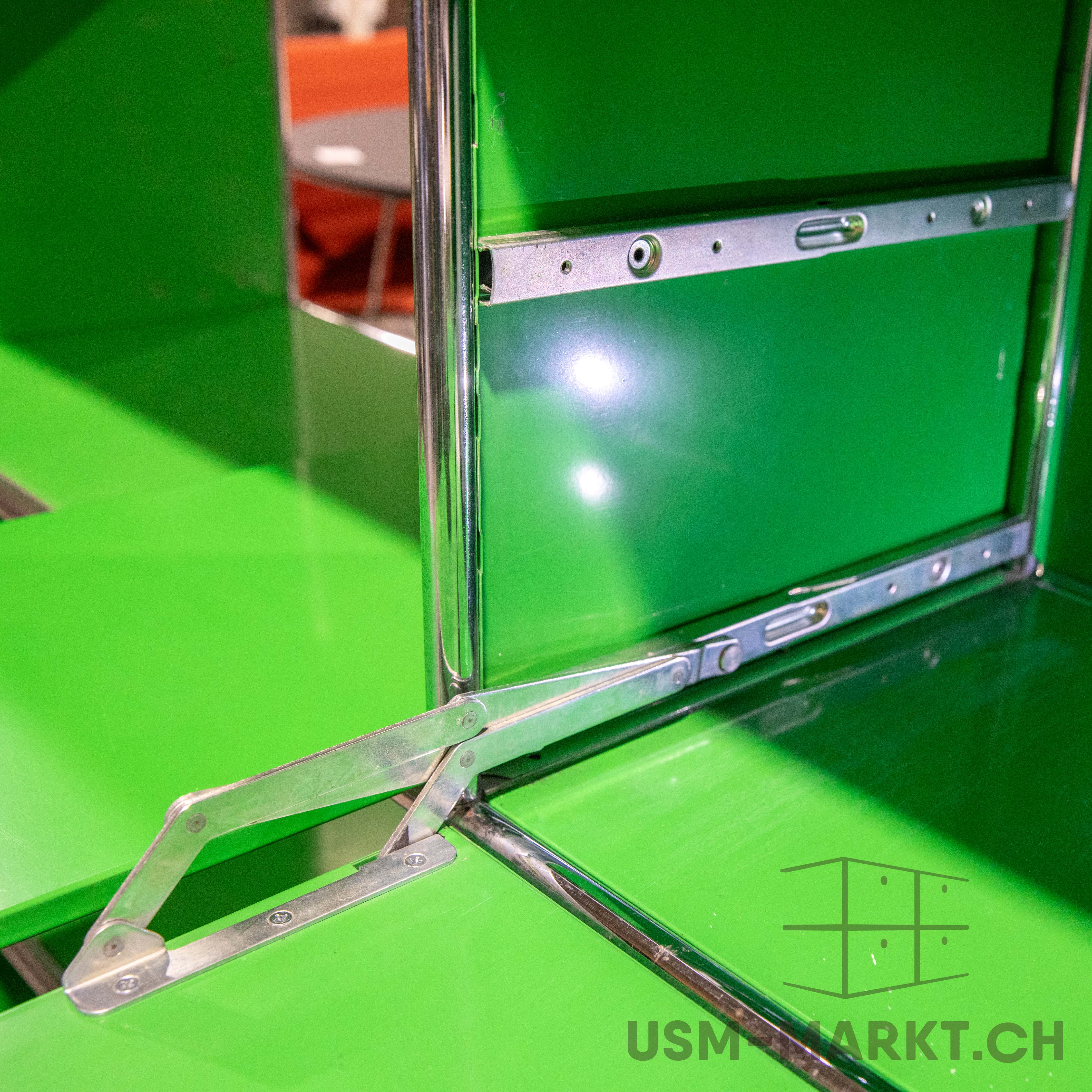

A close-up of a modular green USM Haller piece of furniture with polished chrome tubes and silver joints. An open joint connects two green panels at the front; in the background, another rail with fixings is visible.

CHF 4.00

Available, delivery time: 3–10 days

Length

350

500

20 Artikel verfügbar

Item number: alteschiene.350

Product information "USM mounting rails for old compartment fittings for 1st generation side panels"

Mounting rails for attaching old-generation shelf inserts to the side panels of the first generation.

1 piece contains a single rail.
Two rails are always joined together to form a bracket, suitable for either left-hand OR right-hand use.
For example, 1 folding door you will need one left-hand bracket and one right-hand bracket, making a total of 4 rails.

Assembly:
-First, insert a rail with the curved side facing forwards.
-Then insert the second rail, with the curve facing backwards.
-Slide the two rails over one another and press them together.
-This should be very easy. If not, the rail has not been fitted correctly.
-Finally, secure the rail at the front using the fixing screw.

The length specifications 350 and 500 refer to the USM system dimensions.
That is, from the centre of one ball to the centre of the other.

Condition: Second-hand

Condition:	Second-hand
