Product information "USM drawer mounting old generation"
Second-hand spare parts for USM drawer runners, older generation.
Even though USM builds furniture to last a lifetime, everything does eventually break.
Such as the plastic rollers on the drawer mounting system.
These become brittle with age and eventually disintegrate.
So if your drawer is jolting and no longer runs smoothly, this could be the reason.

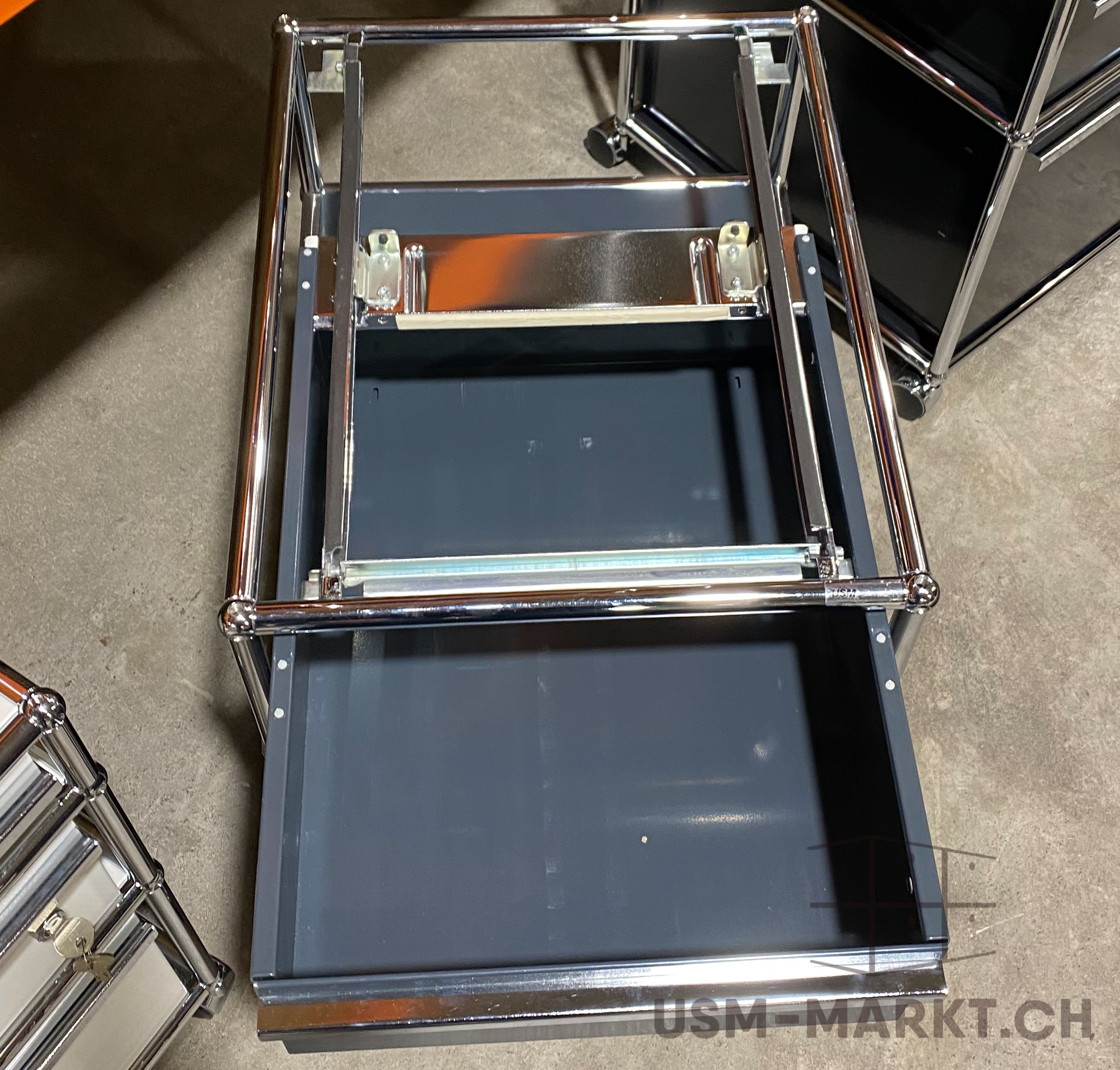

The drawer runner (the white bracket) runs at the front on two ball-bearing plastic rollers, which are connected to one another by a cross-bar (support box).
The drawer slide itself also has two rollers (ball-bearing supports), which can break.
We offer this spare part for experienced fitters. These second-hand spare parts are somewhat older but still in good condition.
However, we cannot, of course, guarantee how long these castors will last.
Assembly
When replacing the support box, please ensure that it is fitted the right way round.
The left and right sides are not the same length.

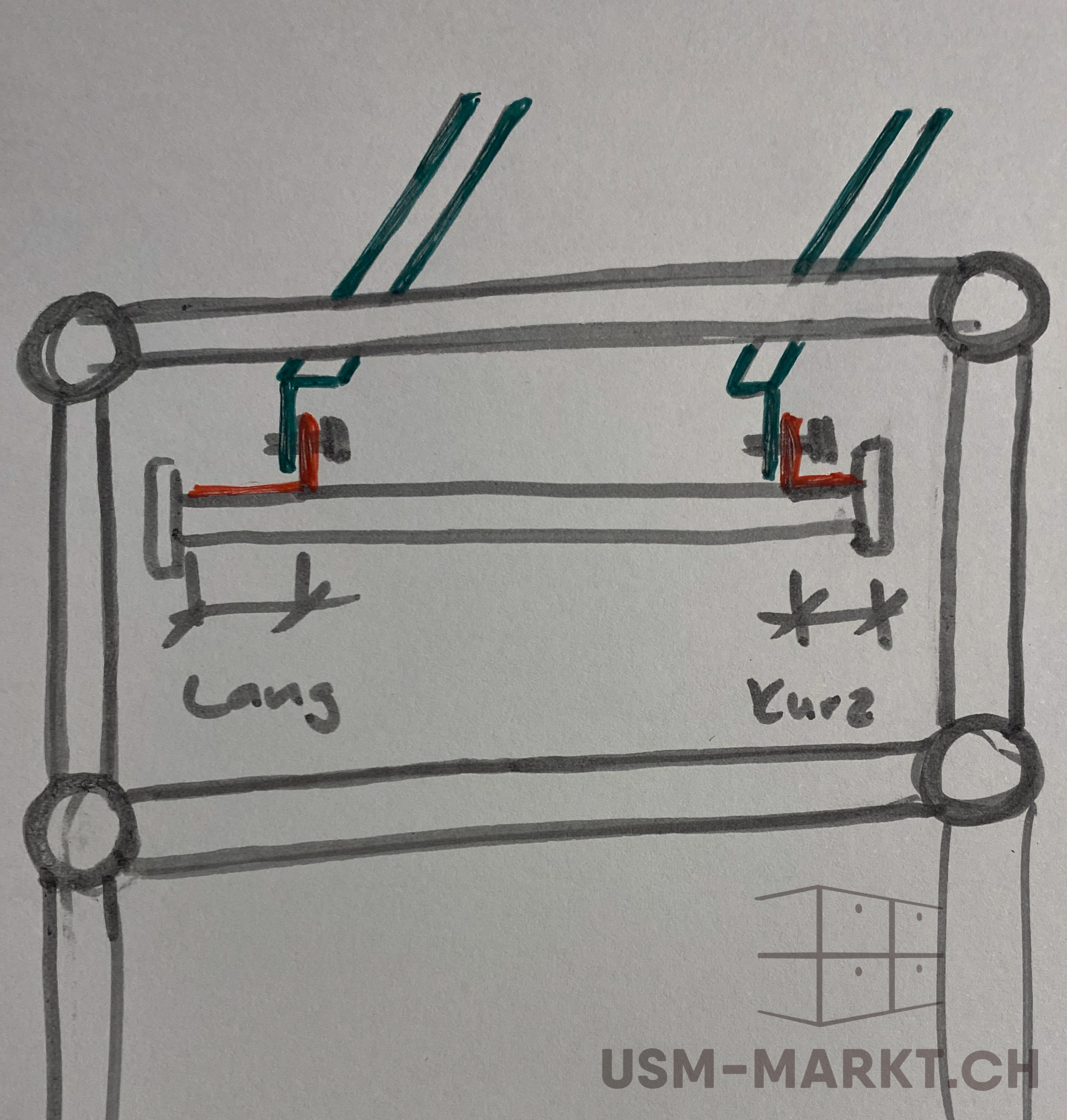

We have included a sketch with the images to illustrate this.
If the drawer is no longer centred at the end, but is too far to the left or too far to the right, the runner has been fitted incorrectly.
We always sell the ball-bearing supports in pairs: 1x left-hand side and 1x right-hand side, including screws and plates.
The plates have two cams; these must be centred.
(If two drawers are fitted side by side, they must be offset to the left or right.)
| Condition: | Second-hand |
|---|
